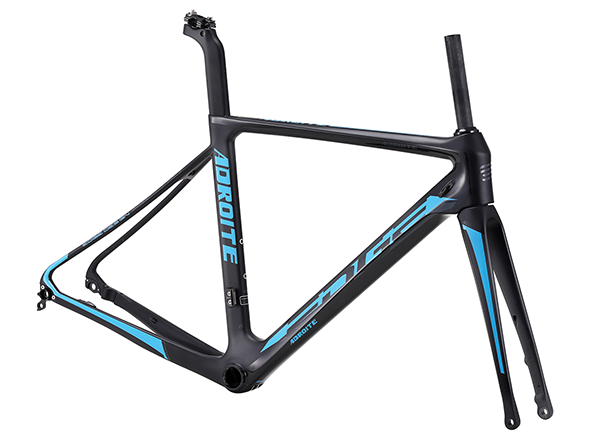

| Feature | Carbon monocoque aerodynamic road frame, DI2 compatible, disc brake. Include fork and seat post. |
|---|---|
| Headtube | 48/57 mm, 1 1/8"- 1 1/2" |
| Seatpost | AERO |
| Size | 480/500/520/540/560/580mm |
| Weight (frame) | 1050g +/- 50g |
| BB Type | BSA/BB30/PF30/BB86 |
| Seattube | AERO |
| Size | S | SC | O | HS | HC | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 480mm | 480 | 74.8∘ | 515 | 125 | 71.3∘ | 45 | 976.4 | 578.4 | 408 | 69 | 373.6 | 521.5 |
| 500mm | 500 | 74.3∘ | 525 | 135 | 72∘ | 45 | 975.7 | 577.7 | 408 | 69 | 375.4 | 533.5 |
| 520mm | 520 | 73.5∘ | 535 | 145 | 72∘ | 45 | 977.3 | 579.4 | 408 | 70 | 373.9 | 544 |
| 540mm | 540 | 73∘ | 550 | 160 | 72.3∘ | 45 | 984.5 | 586.6 | 408 | 70 | 379 | 559.3 |
| 560mm | 560 | 72.5∘ | 560 | 170 | 72.3∘ | 45 | 989.2 | 591.2 | 408 | 70 | 380.6 | 568.9 |
| 580mm | 580 | 72.5∘ | 570 | 190 | 73∘ | 45 | 992.1 | 594.1 | 408 | 70 | 383.8 | 590.5 |
