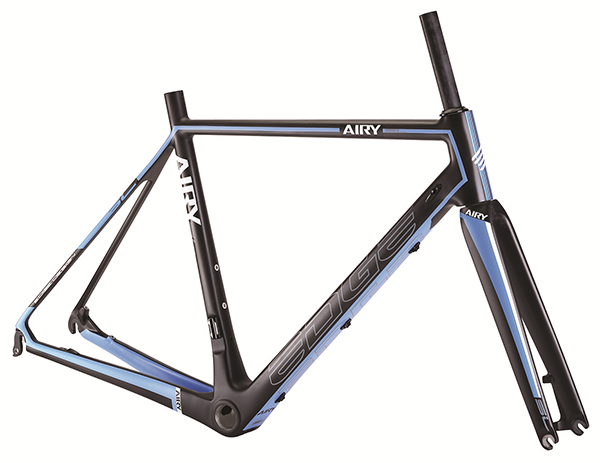

AIRY-D

Specifications

Feature Carbon road frame, disc brake, DI2 compatible. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 450/480/500/520/540/560/580/600mm
Weight (frame) 1100g +/- 50g
BB Type BSA/PF30/BB86
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
450mm 450 400 75∘ 505 491 95.8 71∘ 368 45 974.4 570.2 410 72 370.9 500.7
480mm 480 420.6 74.5∘ 515 500.1 105.8 71∘ 368 45 976.4 572.3 410 72 372.8 512.9
500mm 500 440.6 74.5∘ 525 511.5 110.8 72∘ 368 45 981.4 578.1 410 72 381 519.4
520mm 520 460.6 74∘ 535 522.9 120 72.5∘ 370 45 974.6 579.5 410 69 384 522.5
540mm 540 480.6 73.5∘ 545 531.7 135.8 73∘ 368 45 985.4 580.2 410 69 385.2 543.2
560mm 560 500.6 73.5∘ 559.6 547.2 150.8 73∘ 368 45 1000.1 594.9 410 69 394.5 557.6
580mm 580 520.6 73∘ 575 560.9 170.8 73.5∘ 368 45 1005.2 600 410 69 398.1 578.8
600mm 600 540.6 72.5∘ 590 574.7 190.8 73.5∘ 368 45 1014.3 609 410 69 401.5 598
