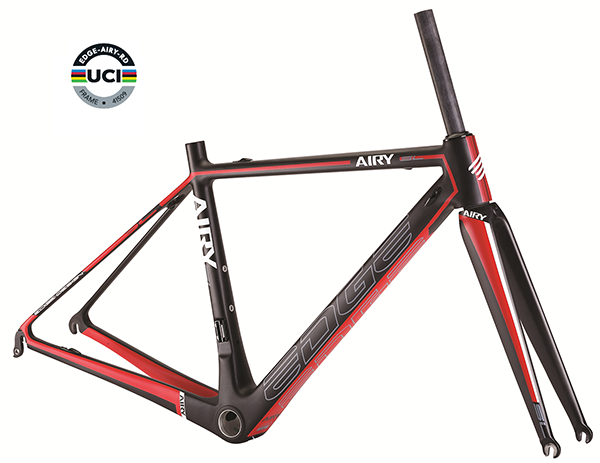

AIRY SL

Specifications

Feature Carbon monocoque super light road frame. DI2 compatible. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 450/480/500/520/540/560/580/600mm
Weight (frame) 850g +/- 50g
BB Type BSA/PF30/BB86
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
450mm 450 400 75∘ 505 491 100 71∘ 370 45 964.2 570.2 408 72 371 501
480mm 480 420.6 74.5∘ 515 500.1 110 71.5∘ 370 45 996.3 572.3 408 72 373 513
500mm 500 440.6 74.5∘ 525 511.5 115 72∘ 370 45 972.2 578.1 408 72 381 519.5
520mm 520 460.6 74∘ 535 522.9 120 72.5∘ 370 45 974.6 579.5 408 69 384 522.5
540mm 540 480.6 73.5∘ 545 531.7 140 73∘ 370 45 975.2 580.2 408 69 385 543
560mm 560 500.6 73.5∘ 559.6 547.2 155 73∘ 370 45 990 594.9 408 69 394.5 557.5
580mm 580 520.6 73∘ 575 560.9 175 73.5∘ 370 45 995.1 600 408 69 398 579
600mm 600 540.6 72.5∘ 590 574.7 195 73.5∘ 370 45 1004.2 609 408 69 401.5 598
