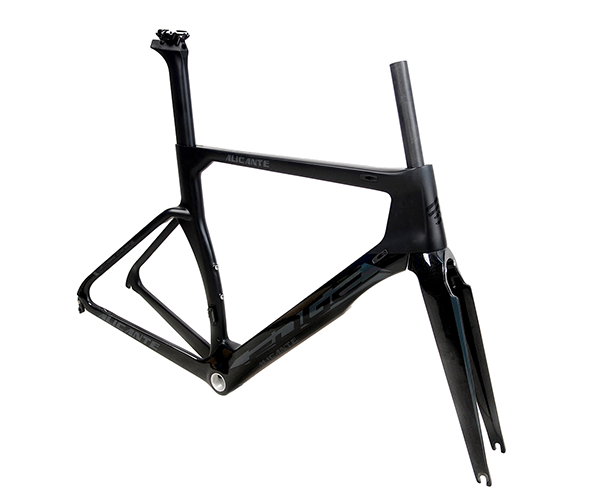

ALICANTE

Specifications

Feature Carbon monocoque aerodynamic road frame. DI2 compatible. Include fork and seat post.
Headtube 48/57mm, 1 1/8"- 1 1/2"
Seatpost Aero
Size 460/490/520/540/560/580mm
Weight (frame) 1080g +/- 25g
BB Type BSA/BB86
Seattube Aero

Geometry

Size S SC O HS HC F OT WB FC RC G I Reach Stack
460mm 460 75∘ 495 115 71.5∘ 367 45 949.7 558 402 69 137.2 357.8 512.8
490mm 480 74.5∘ 515 130 71.5∘ 367 45 965.7 573.9 402 69 146 369 527
520mm 500 74.5∘ 525 135 72∘ 367 45 971.5 579.6 402 69 147.8 377.2 533.5
540mm 520 74∘ 535 140 72.5∘ 367 45 972.1 580.1 402 69 154.7 380.3 540
560mm 540 73.5∘ 545 160 73∘ 367 45 972.5 580.6 402 69 165.9 379.1 560.8
580mm 560 73.5∘ 560 180 73∘ 367 45 987.7 595.7 402 69 171.6 388.4 579.9
