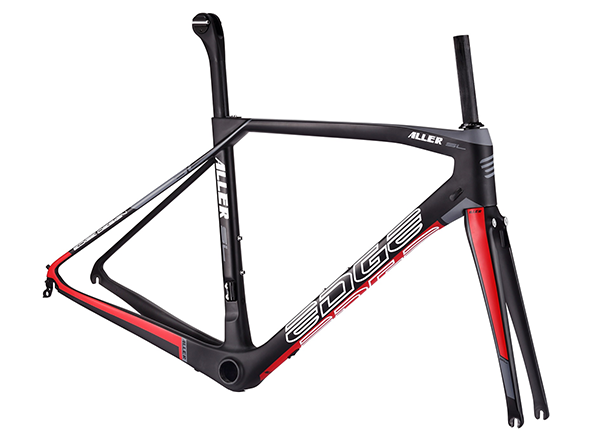

ALLER

Specifications

Feature Carbon monocoque road frame, DI2 compatible. Include fork and seat post.
Headtube 48/57 mm, 1 1/8"- 1 1/2"
Seatpost Square
Size 440/470/510/540/570mm
Weight (frame) 985g +/- 50g
BB Type BSA/PF30/BB86

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
440mm 440 74.5∘ 520 115 71.5∘ 368 45 978 577.7 410 68 377.8 511.8
470mm 470 73.6∘ 540 135 72.5∘ 368 45 980.9 580.6 410 68 382.4 534.2
510mm 510 73∘ 555 155 73∘ 368 45 985.5 584.9 410 68 385 555
540mm 540 73∘ 570 170 73∘ 368 45 1000.2 599.7 410 68 395.6 569.3
570mm 570 72.5∘ 590 190 73.5∘ 368 45 1009.4 609 410 68 403.5 590.2
