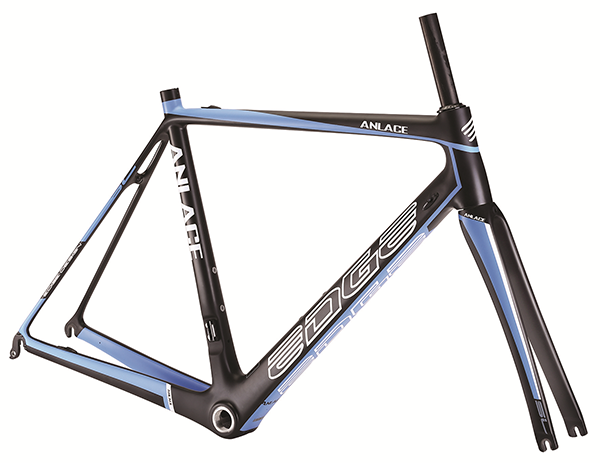

ANLACE

Specifications

Feature Carbon monocoque road frameset. DI2 compatible. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 450/470/490/510/530/550/580mm
Weight (frame) 1000g +/- 50g
BB Type BSA/BB30/PF30
Seattube 31.8mm

Geometry

Size S SP SC O HS HC F OT WB FC RC G Reach Stack
450mm 450 400 75∘ 500 105 70.5∘ 368 43 963.9 568.3 406 70 365 502
470mm 470 420 75∘ 500 110 70.5∘ 368 43 966.5 570 406 70 365.5 506.2
490mm 490 450 75∘ 505 115 71∘ 368 43 965.4 570 406 70 367.6 512.7
510mm 510 470 74.5∘ 517 125 71.5∘ 368 43 967.1 571.5 406 70 370 524.6
530mm 530 490 74∘ 530 135 72∘ 368 43 967.5 572 406 70 375.4 537
550mm 550 510 73.5∘ 548 150 72.5∘ 368 43 981 585.5 406 70 384.8 551
580mm 580 540 73.5∘ 568 170 73∘ 368 43 996.5 601 406 70 398.3 572
