ARGOS-D

Specifications

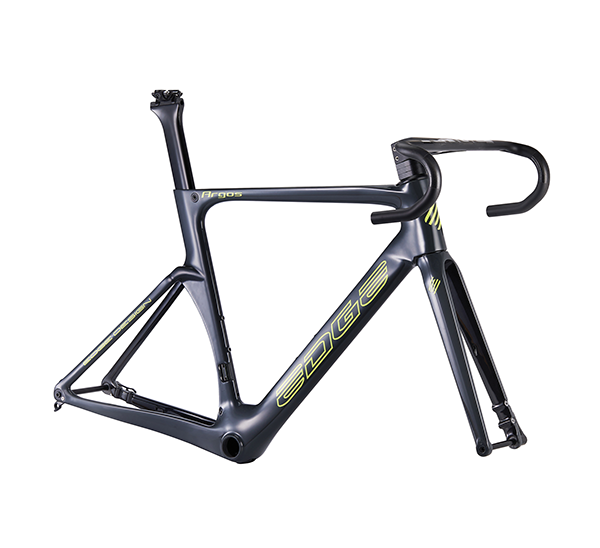

Feature Carbon monocoque aerodynamic road frame, disc brake, DI2 compatible. Include fork and seat post.
Headtube 57/57mm, 1 1/8"-1 1/2"
Seatpost AERO
Size 490/520/540/560/590mm
Weight (frame) 1180g +/- 50g
BB Type BB86
Seattube AERO

Geometry

Size S SC SL O HS HC F OT WB FC RC G Reach Stack
490mm 480 74.5∘ 141 515 120 71.5∘ 375 45 972.6 572.7 410 69 373.4 510
520mm 500 74.5∘ 143.2 525 125 72∘ 375 45 978.6 578.6 410 69 381.8 516.5
540mm 520 74∘ 150 535 130 72.5∘ 375 45 979.5 579.5 410 69 384.8 523.7
560mm 540 73.5∘ 161 545 150 73∘ 375 45 980.2 580.3 410 69 385 543.2
590mm 560 73.5∘ 165 560 170 73∘ 375 45 995 595 410 69 395 558.3
