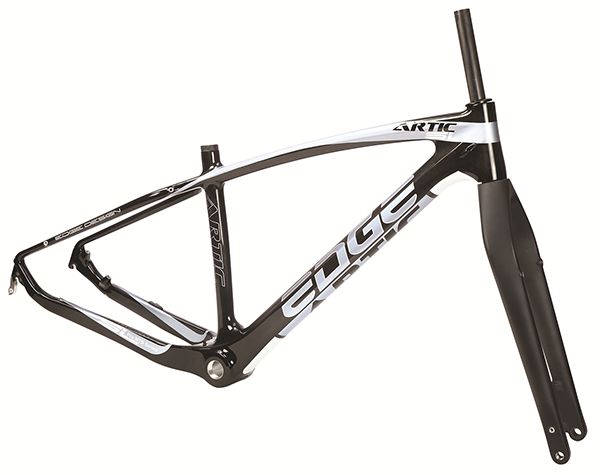

ARTIC

Specifications

Feature Fat bike carbon frame, QR/TA 12mm dropout.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15"/17"/19"/21"
Weight (frame) 1100g +/- 50g
BB Type BSA/BB30/PF30/BB386
Seattube 34.9mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
15" 381 316 67.5∘ 583 562.1 115 69.5∘ 468 45 1112 651.6 467 60 401.9 590.3
17" 432 366.4 67.5∘ 602 576.4 135 70∘ 468 45 1126.8 666.4 467 60 415.2 611.2
19" 483 416.5 67.5∘ 622 597 155 70∘ 468 45 1148 687.5 467 60 429.5 611.2
21" 533 466 67.5∘ 640 611.6 175 70∘ 468 45 1167 706.4 467 60 441.6 648.8
