ASCETIC

Specifications

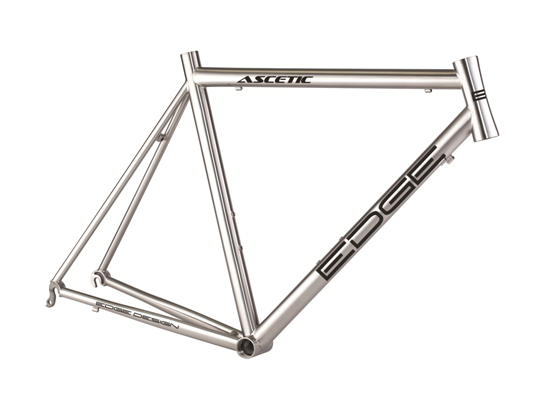

Feature Super light Titanium road frame, integrated headset.
Headtube 46mm, 1 1/8”
Seatpost 27.2mm
Size 510/530/550/570/590mm
BB Type BSA/BB30/BB86
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
510mm 510 465 74∘ 520 516.1 102 72.5∘ 365 45 959.7 564.22 405 67 377.74 496.21
530mm 530 485 74∘ 535 530.9 120 73∘ 365 45 970.8 575.27 405 67 387.35 515
550mm 550 505 73.5∘ 550 545.1 140 73∘ 365 45 981.1 585.5 405 67 391.81 534.13
570mm 570 525 73.5∘ 565 560.15 160 73∘ 365 45 996.3 600.6 405 67 401.14 553.25
590mm 590 545 73∘ 575 569.31 180 73∘ 365 45 1003 605.29 407 67 400.01 572.37
