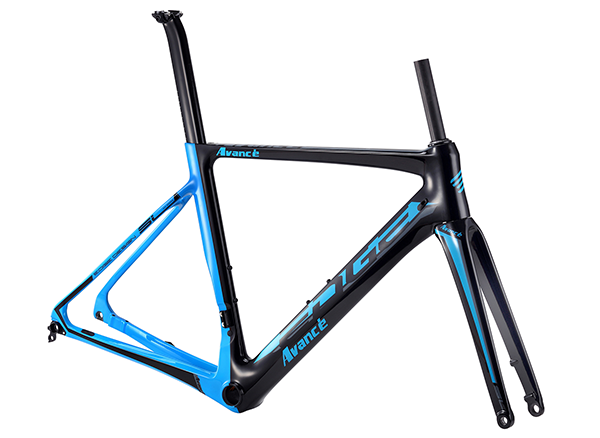

| Feature | Carbon monocoque aerodynamic road frame, DI2 compatible. Include fork and seat post. Direct mount version also available. |
|---|---|
| Headtube | 48/57mm, 1 1/8"- 1 1/2" |
| Seatpost | AERO |
| Size | 430/470/495/510/540mm |
| Weight (frame) | 950g +/- 25g |
| BB Type | BSA/PF30/BB86 |
| Seattube | AERO |
| Size | S | SC | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 430mm | 430 | 75∘ | 515 | 100 | 71.5∘ | 370 | 45 | 971.7 | 576.8 | 405 | 69 | 380.7 | 501.1 |
| 470mm | 470 | 74∘ | 536 | 120 | 72.5∘ | 370 | 45 | 975.3 | 580.4 | 405 | 69 | 385.9 | 523.4 |
| 495mm | 495 | 73.5∘ | 548 | 140 | 73∘ | 370 | 45 | 978 | 583.1 | 405 | 69 | 386.9 | 543.8 |
| 510mm | 510 | 73.25∘ | 565 | 160 | 73.5∘ | 370 | 45 | 987.7 | 592.7 | 405 | 69 | 394.9 | 565 |
| 540mm | 540 | 73∘ | 587 | 180 | 73.5∘ | 370 | 45 | 1006.8 | 611.7 | 405 | 69 | 408.3 | 584.2 |
