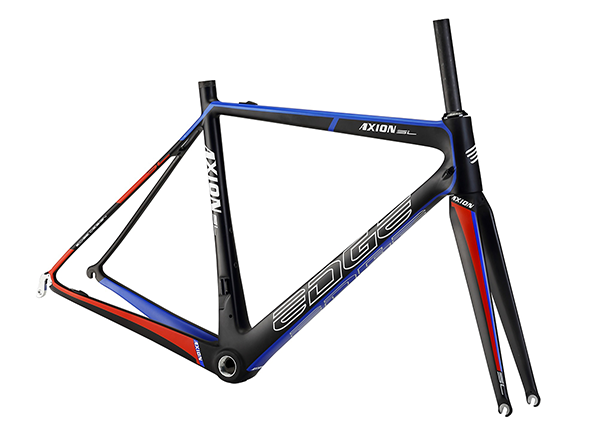

AXION SL

Specifications

Feature Carbon monocoque super light road frame. DI2 compatible. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 470/490/510/540/565/590mm
Weight (frame) 765g +/- 30g
BB Type BSA/BB30/PF30
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
470mm 470 420 75∘ 500 487.1 100 71.5∘ 371 43 955.1 560 405 68 366.4 498.6
490mm 490 440 74∘ 510 494.8 120 72∘ 371 43 952.3 557.1 405 68 360.4 521.7
510mm 510 460 73.5∘ 530.4 514.3 132.8 72.1∘ 371 43 967.2 572 405 68 372.2 534.2
540mm 540 490 73∘ 548 532.7 145 73.1∘ 371 43 970.5 575.3 405 68 380.1 549.2
565mm 565 515 72.5∘ 569.1 552.4 171.1 73.1∘ 371 43 986.1 590.7 405 68 388.1 574.2
590mm 590 540 72∘ 590.7 572.6 197.3 73.1∘ 371 43 1004.6 606.2 405 68 396 599.3
