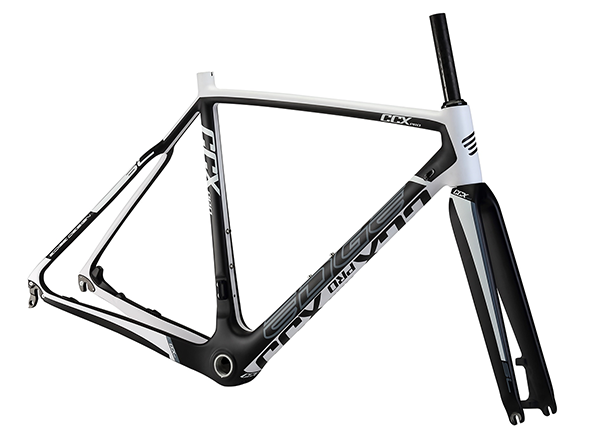

CCX PRO D

Specifications

Feature Carbon cyclocross frame, disc brake. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 480/500/520/540/560/580mm
Weight (frame) 1100g +/- 50g
BB Type BSA/PF30/BB386
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
480mm 480 445 75.5∘ 510 501.4 100 70.5∘ 400 45 1009.4 590 425 53 378 510
500mm 500 465 75∘ 525 516.3 115 70.5∘ 400 45 1020.8 601.5 425 53 384.5 524
520mm 520 485 74.5∘ 535 526.2 125 71∘ 400 45 1021.1 602.2 425 55 386 537.5
540mm 540 505 74∘ 545 536.8 135 71.5∘ 400 45 1021.7 602.8 425 55 387.5 548.5
560mm 560 525 73.5∘ 560 552.2 145 72∘ 400 45 1026.6 607.6 425 57 393.5 562.5
580mm 580 545 73∘ 575 566.8 160 72.5∘ 400 45 1030.9 612.4 425 57 398 578.5
