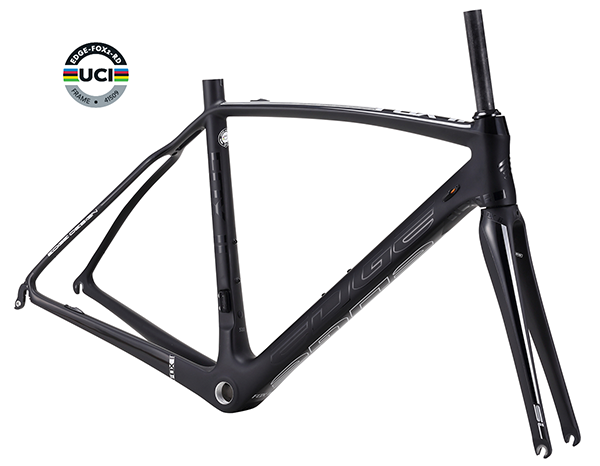

FOX II

Specifications

Feature Super light road carbon frame. Include fork.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 450/480/510/540/570mm
Weight (frame) 900g +/- 50g
BB Type BSA/BB30/PF30/BB86
Seattube 34.9mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
450mm 450 400 75∘ 510 495.5 100 71∘ 368 45 970.4 575.8 405 70 376.6 498.7
480mm 480 430 74.5∘ 525 510 115 72∘ 368 45 973 578.4 405 70 381.8 516.3
510mm 510 460 74∘ 540 524.7 135 72.5∘ 368 45 980.2 584.9 405 68 386.5 535
540mm 540 490 73.5∘ 555 539.7 155 73∘ 368 45 985.8 590.4 405 68 390.3 555.9
570mm 570 520 73∘ 570 555.4 175 73∘ 368 45 995.5 600.1 405 68 394.2 575
