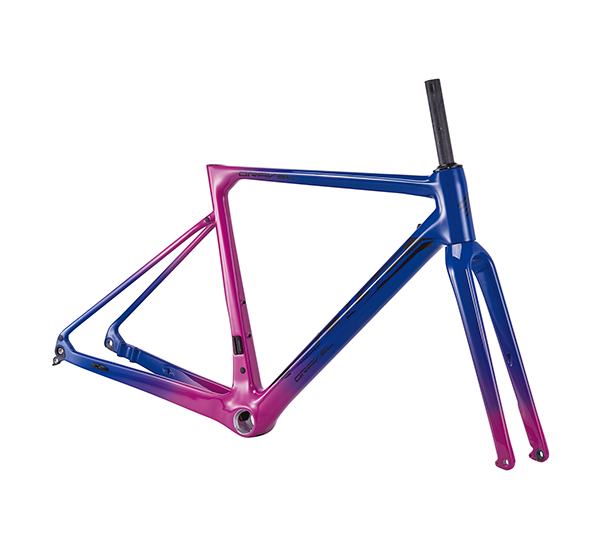

GRAVEL II

Specifications

Feature Carbon gravel road frame. Front brake: flat mount disc; rear brake: flat mount disc. Tyre: 700C*42mm. Include fork.
Headtube 56mm, 1 1/2"- 1 1/2"
Seatpost 27.2mm
Size 520/540/560/580mm
Weight (frame) 990g +/- 50g
BB Type BSA
Seattube OVAL

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
520mm 499 73∘ 545 133 70∘ 398 55 1006 586.5 425 63 361.1 551.2
540mm 529 72.5∘ 555 153 70.5∘ 398 55 1018 600 425 63 370 571.2
560mm 549 72∘ 565 168 70.5∘ 398 55 1028 609.5 425 63 375.4 586.1
580mm 569 71.5∘ 580 180 71∘ 398 55 1035 616.5 425 63 387.8 601.5
