GRAVEL

Specifications

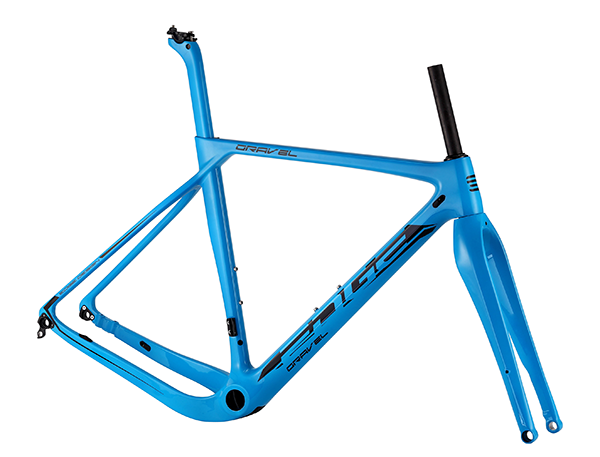

Feature Carbon monocoque aerodynamic gravel road frame, DI2 compatible. Shimano flat mount disc version. Include fork and seat post.
Headtube 48/57mm, 1 1/8"- 1 1/2"
Seatpost AERO
Size 500/535/560/590mm
Weight (frame) 1260g +/- 25g
BB Type BB86
Seattube AERO

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
500mm 500 72.5∘ 528 105 69.5∘ 395 50 1001 592 420 70 365 522
535mm 530 72.5∘ 549 130 71∘ 395 50 1008 598 420 70 376 551
560mm 560 72.5∘ 570 155 72.5∘ 395 50 1014 604 420 70 387 580
590mm 590 72.5∘ 591 180 72.5∘ 395 50 1032 622 420 70 398 609
