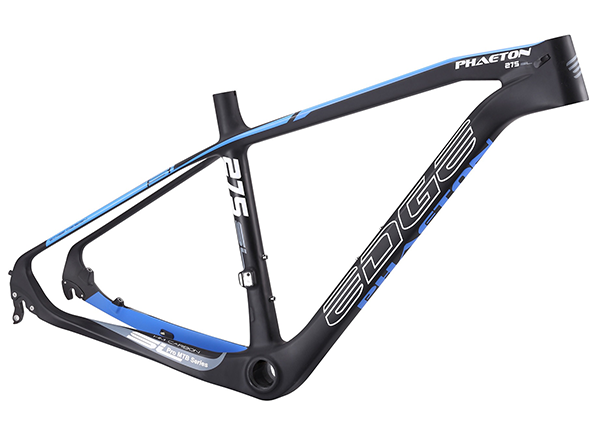

PHAETON 650B

Specifications

Feature 27.5" carbon MTB frame, QR/TA 12mm dropout.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15.5"/17.5"/19"/20.5"
Weight (frame) 1145g +/- 50g
BB Type BSA/PF30/BB92
Seattube 37.0mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
15.5" 400 73∘ 562 95 69∘ 485 43 1073.4 650.3 427 45 398 561
17.5" 440 73∘ 587.6 100 69∘ 485 43 1087.4 664.4 427 45 410.9 578.1
19" 480 73∘ 602 105 69∘ 485 43 1098.1 675 427 45 425.7 583.4
20.5" 520 73∘ 617 110 69∘ 485 43 1113.5 690.3 427 45 437.8 598
