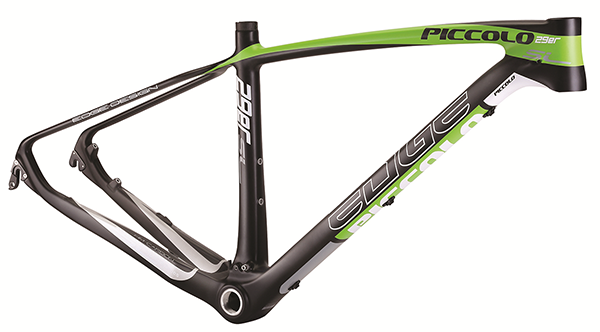

PICCOLO 29ER SL

Specifications

Feature Super light 29" carbon MTB frame, QR/TA 12mm dropout.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15.5"/17.5"/19"/21"
Weight (frame) 900g +/- 50g
BB Type BSA/PF30/BB92
Seattube 34.9mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
15.5" 395 341 72.5∘ 580 555 100 69.5∘ 506 45 1077.4 644.3 440 60 387.1 611.9
17.5" 400 385 72.5∘ 600 572 105 69.5∘ 506 45 1097.7 664.5 440 60 405 618
19" 483 431.3 72.5∘ 620 584.7 120 69.5∘ 506 45 1117.6 684.3 440 60 419.8 632.1
21" 533 478.2 72.5∘ 640 606.5 130 69.5∘ 506 45 1139.3 705.7 440 60 438 640.8
