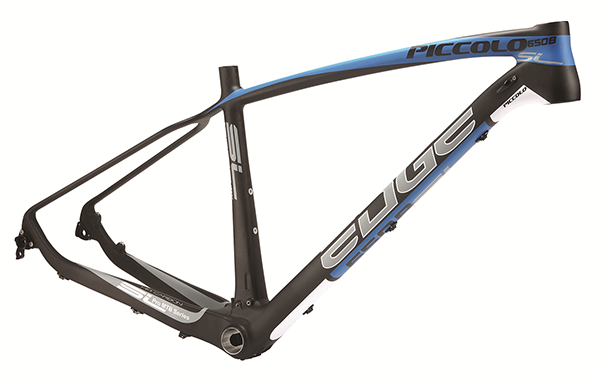

PICCOLO 650B SL

Specifications

Feature Super light 27.5" carbon MTB frame, QR/TA 12mm dropout.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 15.5"/17.5"/19"/20.5"
Weight (frame) 950g +/- 50g
BB Type BSA/PF30/BB92
Seattube 31.8mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
15.5" 400 347.3 73.5∘ 570 555.9 101 70∘ 485 43 1064.4 640.3 428 45 398 581
17.5" 435 381.6 73∘ 595 570.8 115 70.5∘ 485 43 1078 654 428 45 410.1 598.1
19" 480 427.1 73∘ 610 584.2 120 71∘ 485 43 1089.1 665 428 45 425.7 603.4
20.5" 520 466.9 73∘ 625 599.1 130 71∘ 485 43 1104.5 680.3 428 45 437.8 618
