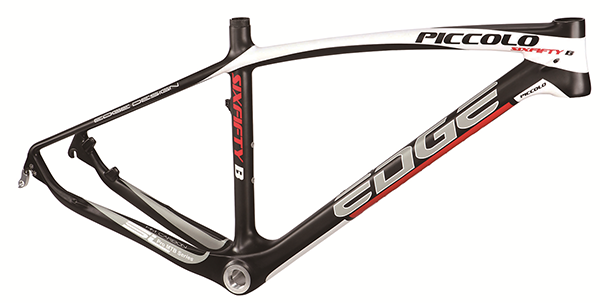

PICCOLO 650B

Specifications

Feature 27.5" MTB carbon frame.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 16"/18"/20"
Weight (frame) 1350g +/- 50g
BB Type BSA/PF30
Seattube 34.9mm

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack
16" 412 348 73∘ 575 556.5 112 69∘ 485 43 1074 649.5 427 45 395.4 587.3
18" 450 374.5 73∘ 595 574 120 71∘ 485 43 1074.5 650 427 45 410 604.9
20" 500 423 73∘ 620 594 140 71∘ 485 43 1098 675.5 427 45 429.2 624.2
