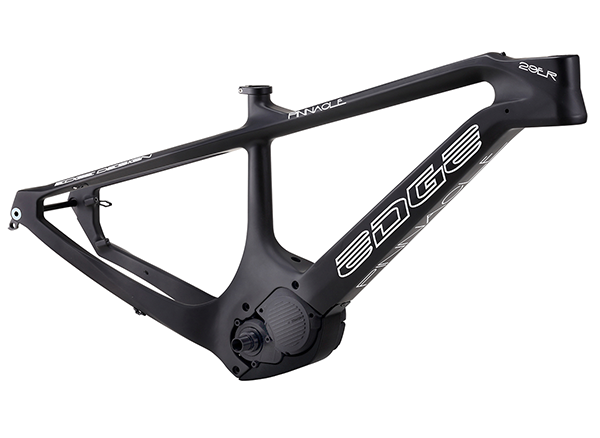

PINNACLE 29ER

Specifications

Feature Carbon monocoque 29ER MTB E-bike frame.
Headtube 48/60mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 16"/18"/20"
Weight (frame) 1660g +/- 25g
BB Type Compatible with SHIMANO STEPS E8000 electric power system
Seattube 37mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack HD1 HD2
16" 408 74∘ 575 105 69∘ 508 46 1133 664 475 58 399 613.7 48 60
18" 458 74∘ 599 115 69∘ 508 46 1158 689 475 58 420 623 48 60
20" 508 74∘ 626 125 69∘ 508 46 1185 717 475 58 444.7 632 48 60
