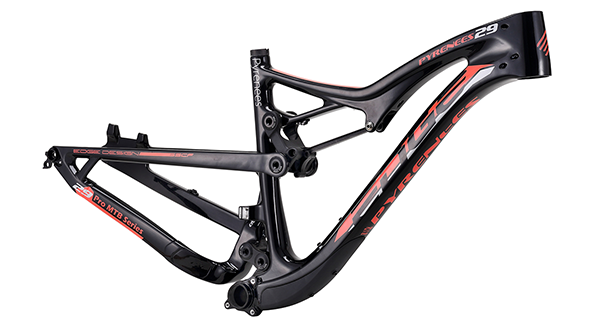

PYRENEES 29ER AM PRO 150

Specifications

Feature 29" carbon MTB suspension frame, TA 12mm dropout, travel:150mm, rear shock eye to eye:200mm.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15.5"/17.5"/19"/21"
Weight (frame) 2050g +/- 50g
BB Type BB92
Seattube 34.9mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack Travel Shock Eye to Eye
15.5" 400 74∘ 580 100 69∘ 550 46 1136.2 680 457 25 402.2 620 150 200
17.5" 440 74∘ 600 110 69∘ 550 46 1157 701 457 25 419.5 629.3 150 200
19" 480 74∘ 620 120 69∘ 550 46 1178 722 457 25 436.8 638.7 150 200
21" 530 74∘ 640 135 69∘ 550 46 1198.9 743 457 25 454.2 648 150 200
