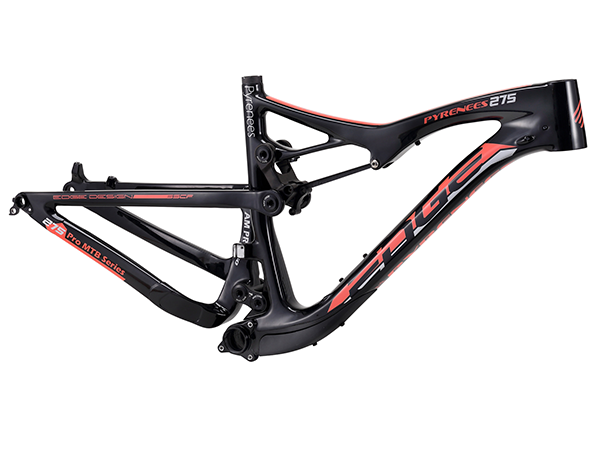

PYRENEES 650B AM PRO 150

Specifications

Feature 27.5" carbon MTB suspension frame, TA 12mm dropout, travel:150mm, rear shock eye to eye:200mm.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15.5"/17.5"/19"/20.5"
Weight (frame) 2050g +/- 50g
BB Type BB92
Seattube 34.9mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack Travel Shock Eye to Eye
15.5" 400 74∘ 580 100 68∘ 540 45 1134.7 694.8 440 5 413.2 591 150 200
17.5" 445 74∘ 600 110 68∘ 540 45 1155.5 715.5 440 5 430.2 591 150 200
19" 483 74∘ 620 120 68.5∘ 540 45 1171 731 440 5 447.1 602.9 150 200
20.5" 520 74∘ 640 130 68.5∘ 540 45 1191 751 440 5 463.5 612.9 150 200
