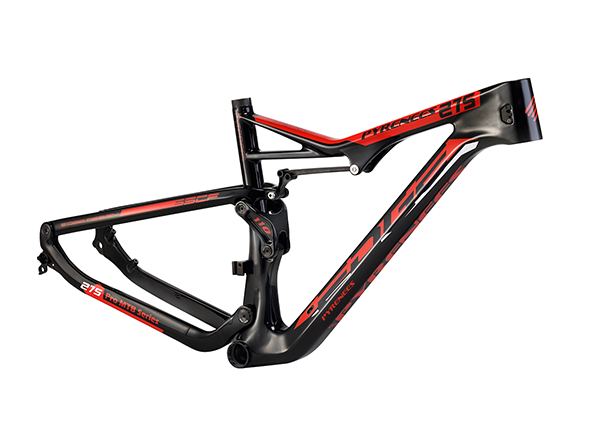

PYRENEES 650B

Specifications

Feature 27.5" carbon MTB suspension frame, XC, travel:110mm, rear shock eye to eye:190mm, TA 12*142mm dropout; option: TA 12*148mm dropout.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 31.6mm
Size 15.5"/17.5"/19"/20.5"
Weight (frame) 2000g +/- 50g
BB Type BB92
Seattube 34.9mm

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack Travel Shock Eye to Eye
15.5" 395 74.5∘ 559 95 69∘ 502 51 1098 662.1 435 45 397.6 582 110 190
17.5" 445 74.5∘ 585 100 69∘ 502 51 1117.7 686.6 435 45 412.7 588.7 110 190
19" 483 74.5∘ 600 115 69∘ 502 51 1141 705.1 435 45 433.4 600.7 110 190
20.5" 520 74.5∘ 630 125 69∘ 502 51 1172 736.1 435 45 460.8 610 110 190
