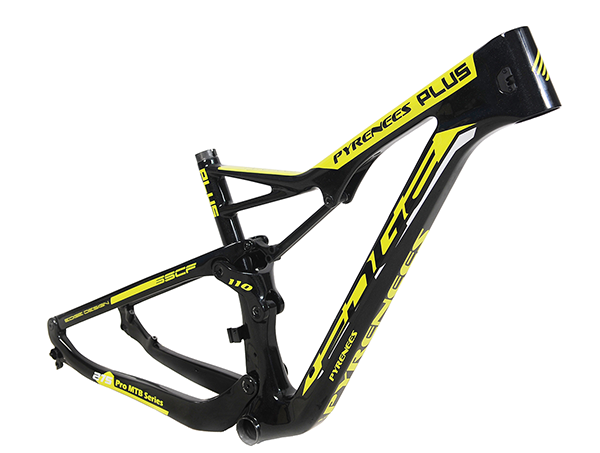

PYRENEES PLUS

Specifications

Feature 27.5"" PLUS carbon MTB suspension frame, TA 12mm dropout, travel:110mm, rear shock eye to eye:190mm.
Headtube 48/57mm, 1 1/8"-1 1/2"
Seatpost 27.2mm
Size 15.5"/17.5"/19"/20.5"
Weight (frame) 2050g +/- 25g
BB Type BB92
Seattube 31.8mm

Geometry

Size S SC O HS HC F OT WB FC RC G I Reach Stack Travel Shock Eye to Eye
15.5" 395 74.5∘ 558.2 95 69∘ 502 51 1100.6 659.4 445 45 162.6 395.6 584.8 100 190
17.5" 445.5 74.5∘ 585 100 69∘ 502 51 1127.8 686.6 445 45 163.3 421.7 588.7 100 190
19" 483 74.5∘ 600 115 69∘ 502 51 1144.3 703 445 45 167.1 432.9 602.7 100 190
20.5" 520 74.5∘ 630 125 69∘ 502 51 1175.3 733.9 445 45 169.7 460.5 612.1 100 190
