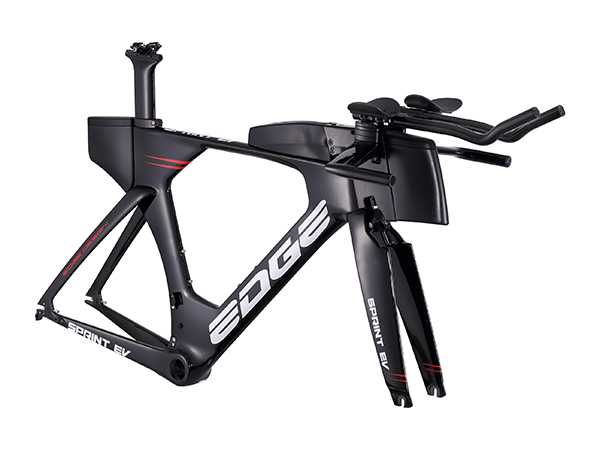

SPRINT EV

Specifications

Feature Carbon time trial frame. Include fork, seat post and handle bar. Front brake: direct mouont (TRP 860); rear brake: direct mount (TRP 861).
Headtube 45/52mm, 1 1/8"-1 3/8" (for FSA IS-2C-138 headset)
Seatpost Oval
Size 480/500/520/540/560mm
Weight (frame) 1350g +/- 50g
BB Type PF30
Seattube AERO

Geometry

Size O(SC:76∘) O(SC:78∘) HS HC OT WB FC RC G Reach Stack
480mm 492 474 80 72.5∘ 43 929 552 387 65 372 479
500mm 519 501 80 72.8∘ 43 954 576 387 65 399 480
520mm 542 523 107 72.8∘ 43 978 600 387 65 415 506
540mm 565 544 134 72.8∘ 43 1002 624 387 65 431 532
560mm 587 566 161.4 72.8∘ 43 1027 648 387 65 447 558
