SPRINT-2

Specifications

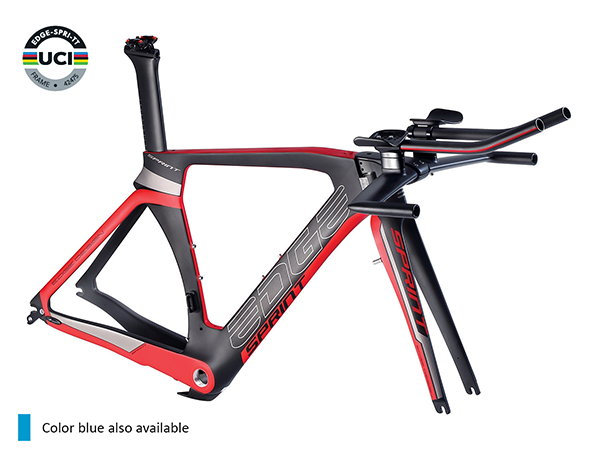

Feature Carbon time trial frame with fork, seat post and handle bar. Front brake: mini V; rear brake: direct mount.
Headtube 46mm, 1 1/8"-1 1/2"
Seatpost Oval
Size 450/490/520/540/560mm
Weight (frame) 1360g +/- 50g
BB Type BSA/PF30
Seattube AERO

Geometry

Size S SP SC O OS HS HC F OT WB FC RC G Reach Stack HD HB ST
450mm 450 435 75∘ 490 488 91.5 71∘ 370 45 945.5 562.5 395 75 372.5 453.5 46 46 75
490mm 515 500 75∘ 511 511.5 101.5 72.5∘ 370 45 945.5 562.8 395 75 378 512 46 46 75
520mm 525 510 75∘ 531.5 532 111.5 72.5∘ 370 45 967 584 395 75 396 521.5 46 46 75
540mm 542 527 75∘ 550.5 551 129.5 72.5∘ 370 45 986.5 603.5 395 75 410 538 46 46 75
560mm 561 546 75∘ 569 569.5 148 72.5∘ 370 45 1006 622.5 395 75 424 556 46 46 75
