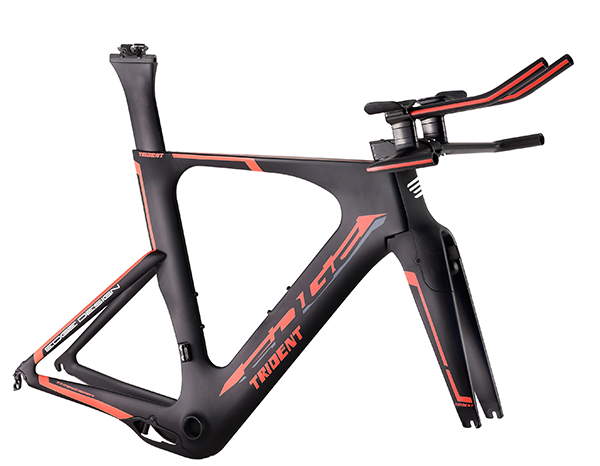

TRIDENT

Specifications

Feature Carbon monocoque aerodynamic triathlon frame. DI2 compatible. Include fork, seat post, stem and handle bar.
Headtube 46mm, 1 1/8"
Seatpost AERO
Size 505/525/549/577/600mm
Weight (frame) 1430g +/- 25g
BB Type BB86
Seattube AERO

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
505mm 505 77∘ 480 100 70.3∘ 370 45 954.3 570.5 395 72 364.8 499.2
525mm 525 77∘ 505 115 71.5∘ 370 45 970.4 586.5 395 72 385.5 517.7
549mm 549 77∘ 530 140 72∘ 370 45 993.3 609.2 395 72 404.6 543.1
577mm 577 77∘ 560 165 72.5∘ 370 45 1020.8 636.5 395 72 428.7 568.7
600mm 600 77∘ 585 190 72.5∘ 370 45 1048 663.5 395 72 448 592.6
