AEOLUS

Specifications

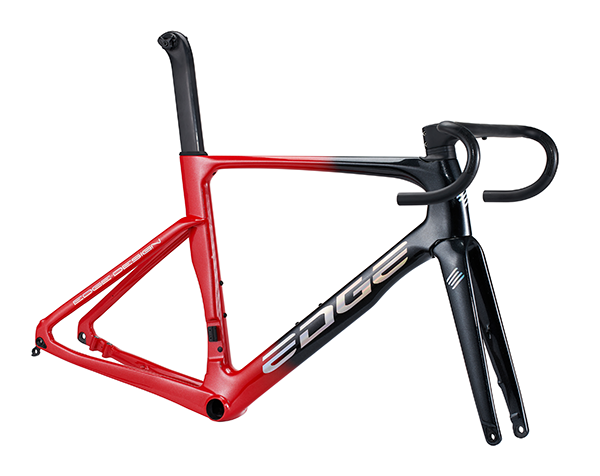

Feature Carbon aero road disc frame with fork and seat post. Front brake: flat mount disc; rear brake: flat mount disc. Tyre:700C*28mm.
Headtube 56mm, 1 1/2"- 1 1/2"
Seatpost AERO
Size 430/460/500/540/570mm
Weight (frame) 1135g +/- 30g (500mm)
BB Type BB86
Seattube OVAL

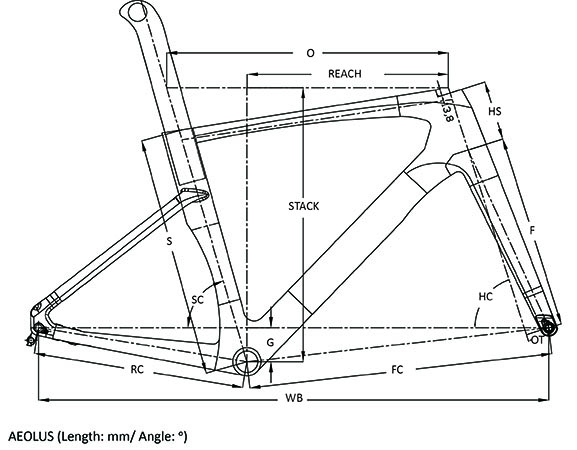

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
430mm 430 74∘ 520 105 71∘ 370 45 974 577 406 65 376 500
460mm 460 74∘ 535 115 72.5∘ 370 45 977 580 406 65 388 514
500mm 500 74∘ 553 145 73∘ 370 45 991 594 406 65 397 544
540mm 540 74∘ 569 165 73∘ 370 45 1007 610 406 65 407 564
570mm 570 74∘ 585 180 73∘ 370 45 1024 627 406 65 420 578
