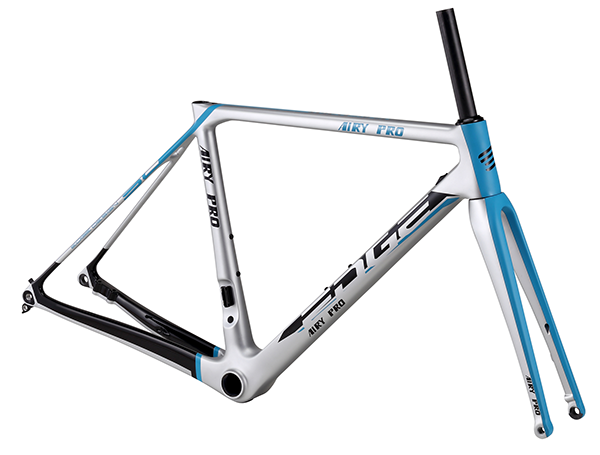

| Feature | Carbon monocoque super light road frame, DI2 compatible. Flat mount disc. Include fork. |
|---|---|
| Headtube | 48/57mm, 1 1/8"- 1 1/2" |
| Seatpost | 27.2mm |
| Size | 450/480/500/520/540/560/580mm |
| Weight (frame) | 875g +/- 25g |
| BB Type | BSA/BB30/PF30/BB86 |
| Seattube | 31.8mm |
| Size | S | SC | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 450mm | 415 | 75° | 505 | 100 | 71° | 368 | 45 | 964.4 | 570.4 | 405 | 72 | 371 | 501 |
| 480mm | 435 | 74.5° | 515 | 110 | 71.5° | 368 | 45 | 967.3 | 573.3 | 405 | 72 | 373 | 512 |
| 500mm | 455 | 74.5° | 525 | 115 | 72° | 368 | 45 | 972.5 | 578 | 405 | 72 | 381 | 519 |
| 520mm | 475 | 74° | 535 | 120 | 72.5° | 368 | 45 | 974.6 | 579.5 | 405 | 69 | 385 | 522 |
| 540mm | 495 | 73.5° | 545 | 140 | 73° | 368 | 45 | 975.2 | 580.2 | 405 | 69 | 384 | 543 |
| 560mm | 515 | 73.5° | 559.6 | 155 | 73° | 368 | 45 | 990 | 595 | 405 | 69 | 395 | 558 |
| 580mm | 535 | 73° | 575 | 175 | 73.5° | 368 | 45 | 995.1 | 600 | 405 | 69 | 398 | 579 |
