| Feature | Titanium road frame, flat mount disc. DI2 compatible.Tire: 700*28C. |
|---|---|
| Headtube | 46/56mm, 1 1/8"-1 1/2" |
| Seatpost | 27.2mm |
| Size | 480/500/520/560/580mm |
| BB Type | BSA |
| Seattube | 31.8mm |
| Weight (frame) | 1850g +/- 50g (520mm frame with thru axle) |

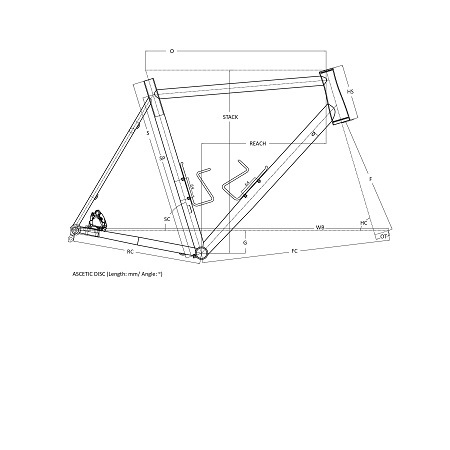

| Size | S | SP | SC | O | HS | HC | F | OT | WB | FC | RC | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 480mm | 480 | 430 | 74.5° | 516.4 | 110 | 71.5° | 375 | 45 | 973 | 573.9 | 410 | 72 | 373 | 517 |
| 500mm | 500 | 450 | 74.5° | 526.2 | 115 | 72° | 375 | 46.5 | 978.6 | 579.5 | 410 | 72 | 381 | 523.4 |
| 520mm | 520 | 470 | 74° | 536.9 | 120 | 72.5° | 375 | 45 | 980.2 | 581 | 410 | 72 | 385 | 529.9 |
| 560mm | 560 | 510 | 73.5° | 562.4 | 155 | 73° | 375 | 45 | 996.4 | 597.1 | 410 | 72 | 395 | 565 |
| 580mm | 580 | 530 | 73° | 577.1 | 175 | 73.5° | 375 | 45 | 1000.8 | 601.5 | 410 | 72 | 398 | 585.9 |
