AWOL 2.0

Specifications

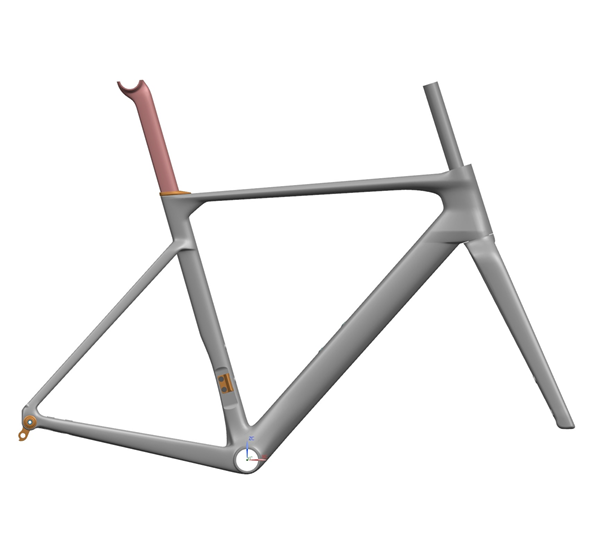

Feature Carbon aero road disc frame with fork and seat post. Flat mount disc brake. Tyre:700C*32mm. Fork crown: 36° lower presser. Saddle clamp: 7*7mm/7*9mm. Hanger: SRAM UDH.
Headtube 1.5" (FSA NO55R)
Seatpost AERO
Size 430/460/500/540/570mm
Weight (frame) 1135g +/- 30g (Size: M)
BB Type BB86
Seattube AERO

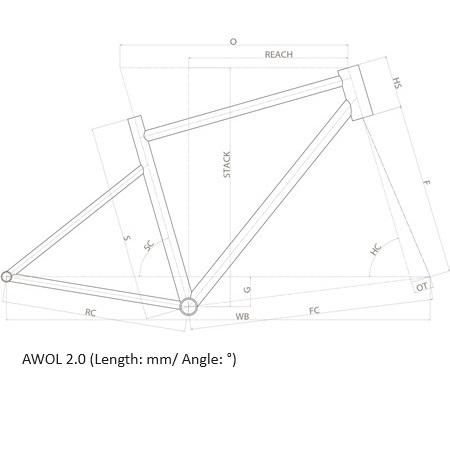

Geometry

Size S SC O HS HC F OT WB FC RC G Reach Stack
XS 450 75° 512 105 71.5° 376 46 975 578 408 72 378 512
S 480 74.5° 528 120 72∘ 376 46 980 583 408 72 382 528
M 510 74° 542 135 72° 376 46 990 592 408 70 387 540
L 535 73.5° 565 155 72.5° 376 46 1006 606 408 70 399 561
XL 560 73° 585 180 72.5° 376 46 1021 621 408 70 406 585
